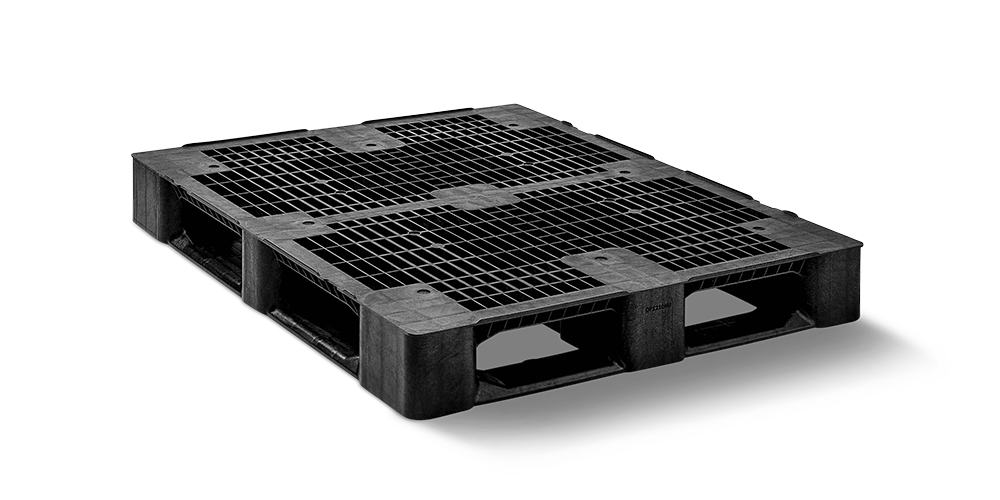

Plastic pallet 1200 x 1000 open deck 5 runners medium
Article number
3.QP1210MB5RR
Files
Drawings
| pallets-v5-5runner-rechthoek |
Properties
General
| Dimensions (mm): | 1200x1000 |
| Length (mm) | 1200 |
| Width (mm) | 1000 |
| Height (mm): | 150 |
| Weight (kg): | 15.32 |
| Static load (kg): | 6000 |
| Dynamic load (kg): | 1500 |
| Load in rack (kg): | 1000 |

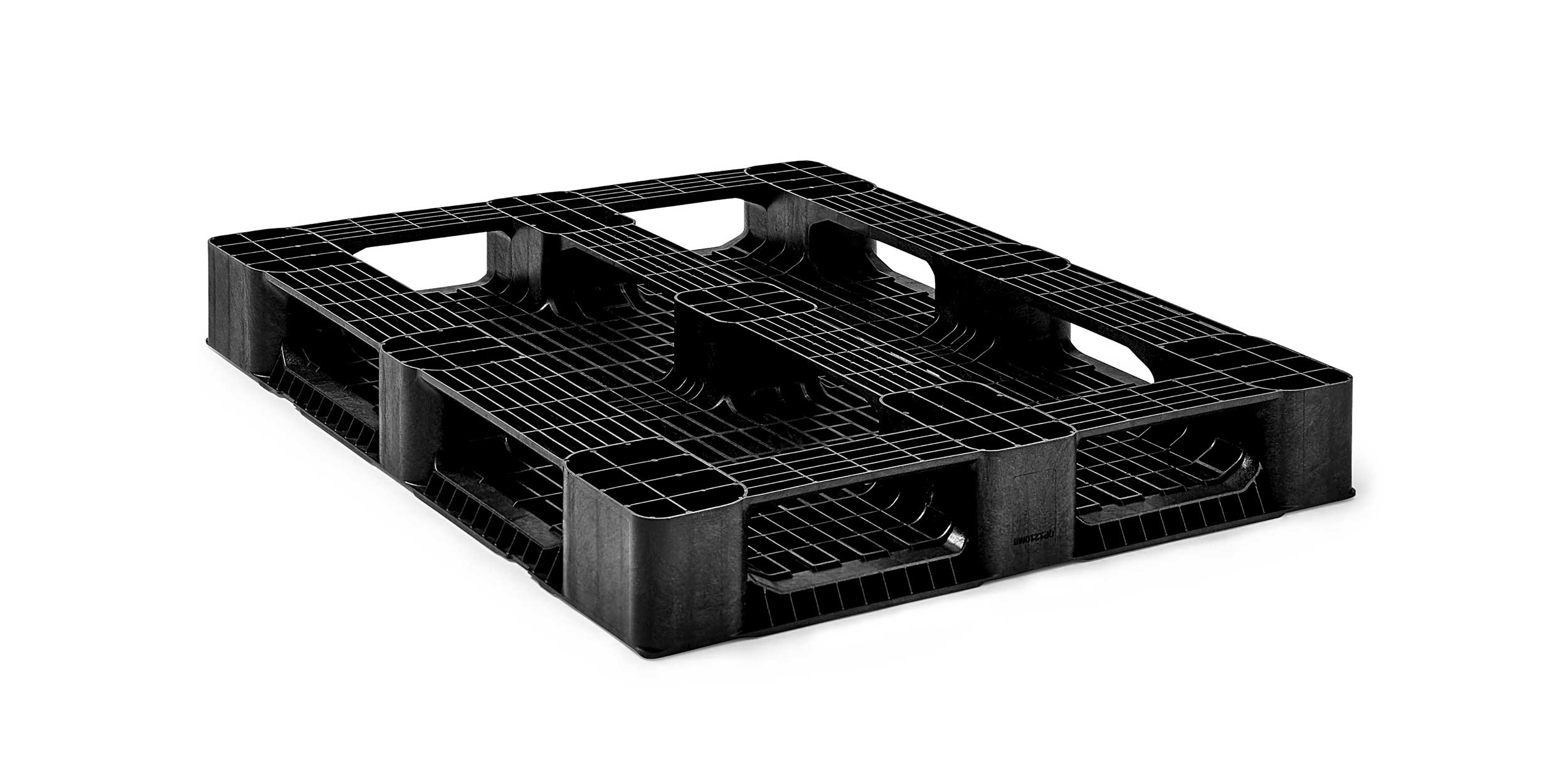

| Bottom: | 5 runners |
| Upper deck: | open deck |

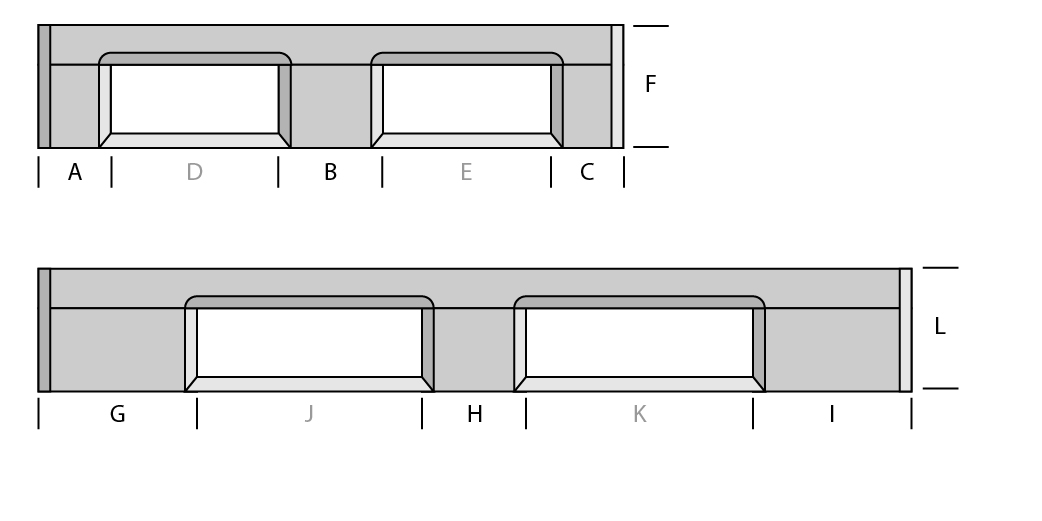

Dimensions
| A | 145 |
| B | 150 |
| C | 145 |
| D | 280 |
| E | 280 |
| F | 150 |
| G | 215 |
| H | 150 |
| I | 215 |
| J | 310 |
| K | 310 |
| L | 150 |
